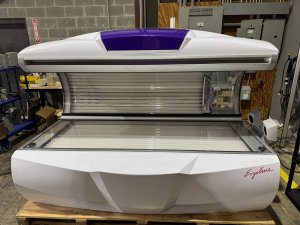

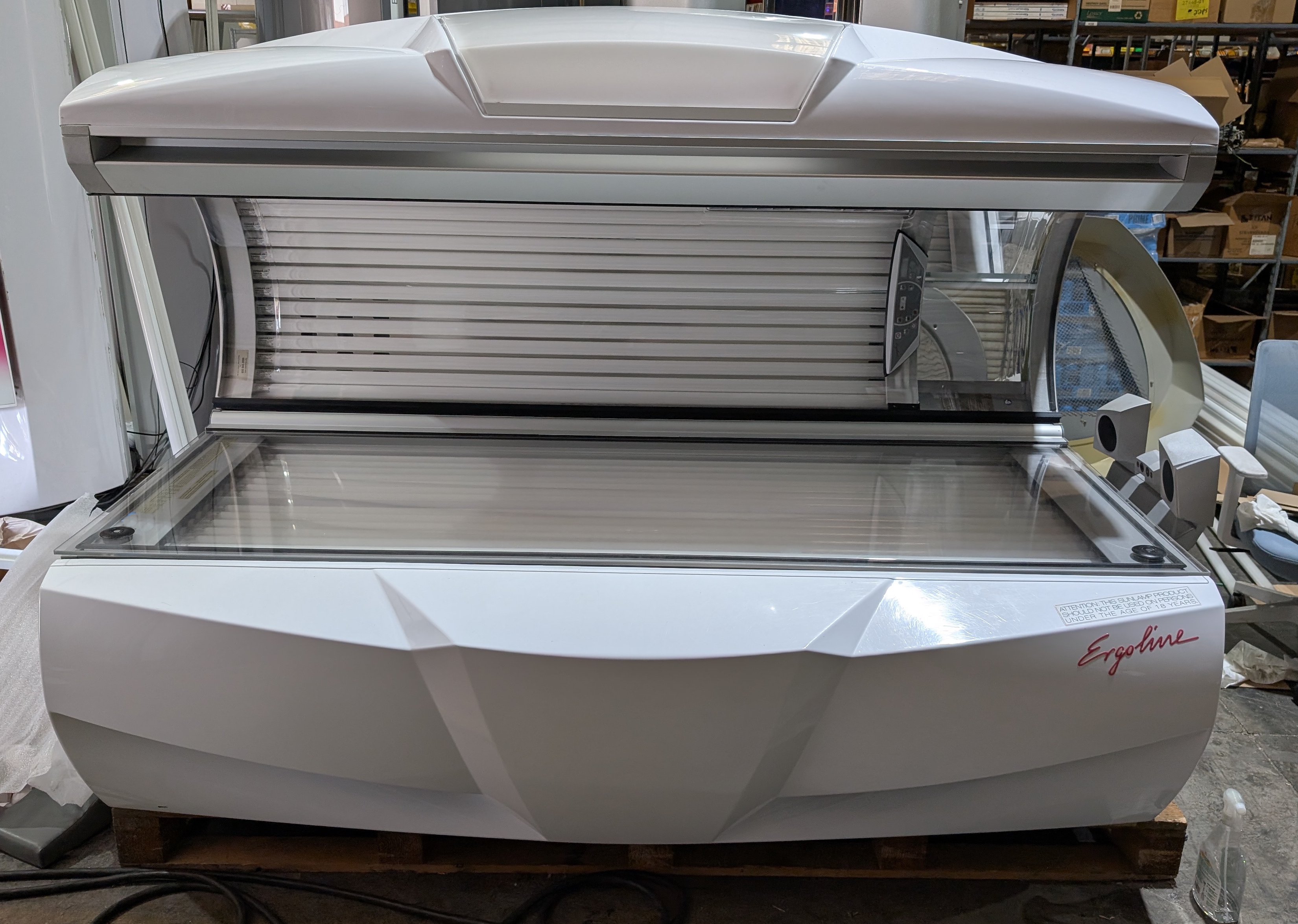

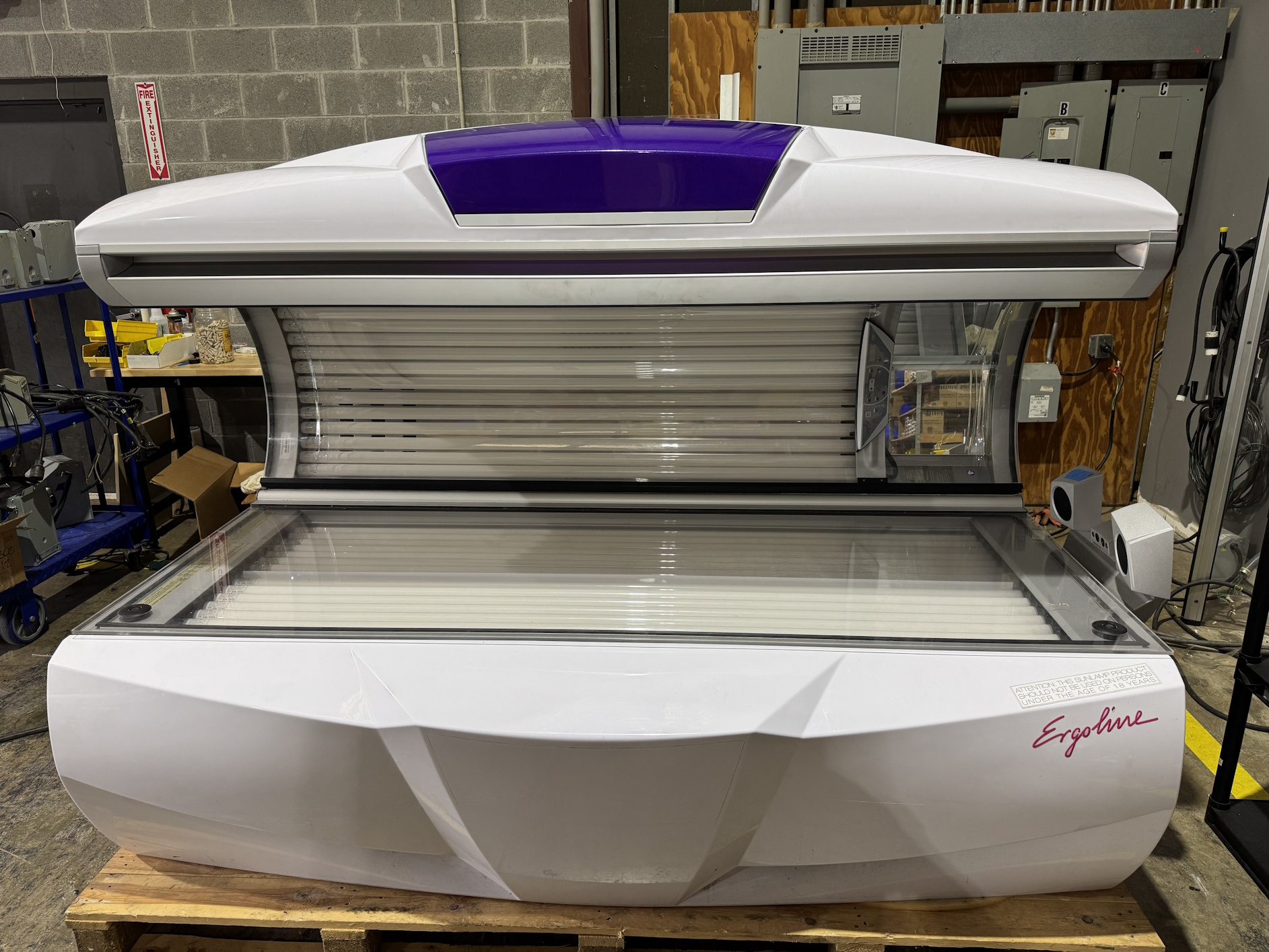

Ergoline 42/4 Tanning Bed

Power consumption rating	10,000 W
Rated frequency	60 Hz
Rated voltage	230 V
Rated breakers	40 amp 3-pole or 60 amp 2-pole
Rated amp draw 3 Ø	27
Rated amp draw 1 Ø	47
Mains Power Connection*	The unit is configured from the factory for connection to 3-Phase power. A 1" liquid-tight connector is provided See note for wiring
Noise level 1m away from device	68.1 dB
Noise level inside the device	<70dB
Load on the acrylic panel	max. 330 lb
Weight	approx. 1,190 lb
Operating temperature	59-89 °F
Unit footprint**	94 1/2" X 82 11/16"
Minimum Room Size	9' X 8'
Number of body lamps	Base 16 @ 180W 79" Canopy 26 @ 160W 71"
Number of facial lamps	4 @ 520W
Spaghetti lamps	3 @ 8W

*Owner is responsible for all wiring up to the terminal block connection inside the device. As well as

ensuring the wire is properly sized for the amp draw and breaker selection per the electrical code in

their area.

**Minimum footprint size for proper operation and cooling of the unit. Does not account for door sizes

or obstructions in the room. (Footprint measurement is not the room size)
